Feature
• Single band IEEE 802.11 a/n/ac/ax standard
• Case mounting
• Frequency (MHz) : 5150-5825
• Peak Gain (dBi) : 4.3
• VSWR : 2.0 : 1
• Dimension (mm) : 21.5 x 5.8 x 0.6
• Connector : IPEX MHF I
• Cable Length (mm) : 70 (customized)
Wi-Fi/WLAN Wireless 5GHz PCB Antenna, 21.5 x 5.8 x 0.6mm
Embedded Antenna / WIFI 5GHz
DESCRIPTION
SPECIFICATION
OUR SERVICE
Wi-Fi/WLAN Wireless 5GHz PCB Antenna, 21.5 x 5.8 x 0.6mm

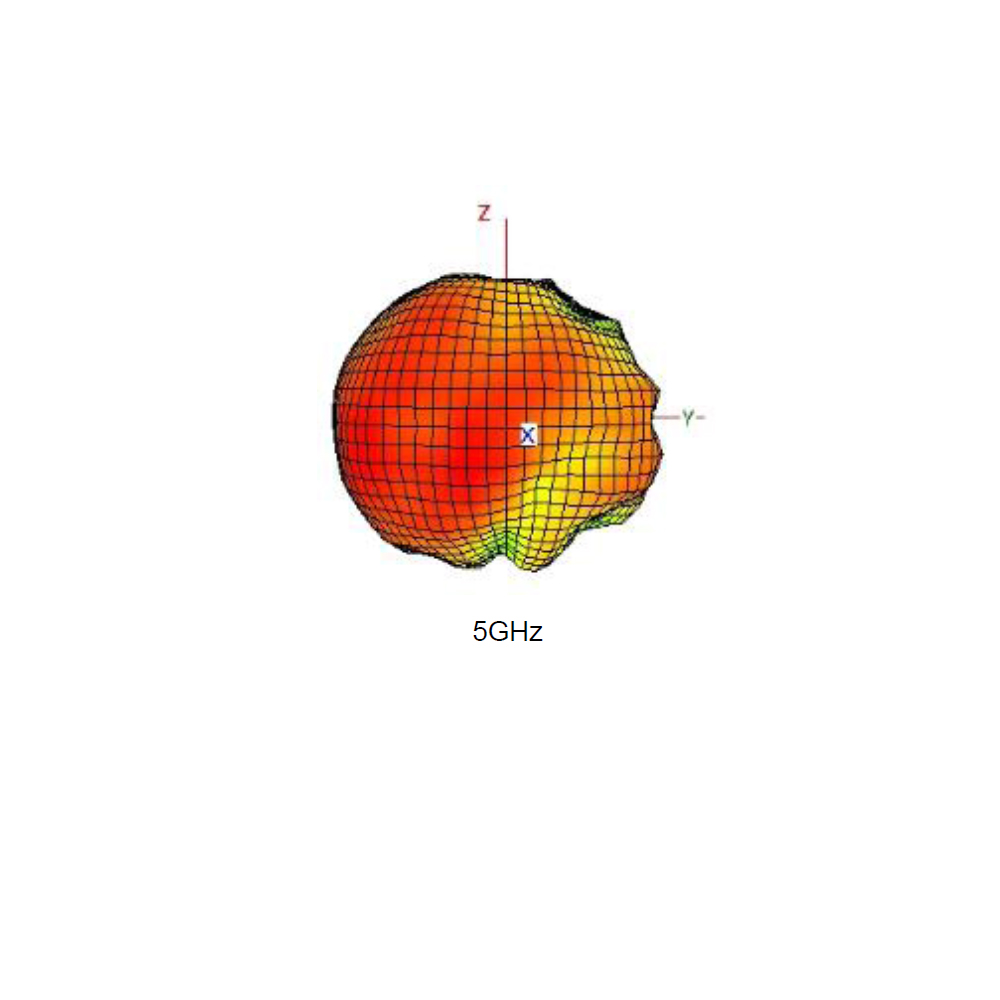

This embedded antenna, ALX19P-091AA2-00, is a dipole antenna with high efficiency and quick integration for 5GHz frequency band, working on Wi-Fi IEEE 802.11 a/n/ac/ax standard applications. It has a slightly higher peak gain of 4.3dBi at 5GHz, designed in a PCB with IPEX connector and 70mm RF-1.13 cable for easy installation.
Comparing to 2.4GHz band, 5GHz WiFi frequency carries more data and transmits it at a faster speed. Therefore, if your priority is to provide an excellent Wi-Fi performance as for speed, go for 5GHz antennas. For example, business hotels need to provide a fast Wi-Fi connection to the travelers, allowing them to stream movies online or upload and download files. While choosing 5GHz antennas, LYNwave can make sure any of our antennas will be meeting your requirements for the module.
Since LYNwave has strong R&D antenna hardware development capabilities and is specialized in using advanced computer simulation to create customized antennas, we will support you the optimal antenna with our skills and technologies. If you have any request, contact LYNwave and we will provide comprehensive support for you.
| Model Name | ALX19P-091AA2-00 |
| Frequency (MHz) | 5150~5825 |
| Peak Gain (dBi) | 4.3 |
| VSWR | 2.0 : 1 |
| Dimension (mm) | 21.5 x 5.8 x 0.6 |
| Cable Length (mm) | 70 (customized) |
| Connector | IPEX |
| Operation Temp (°C) | -40°C ~ +85°C |
| Manufacturing | 100% made in Taiwan |
| Lead Time | 4~6 weeks |
- Innovative Customized Antenna Design Service
- RF Antenna Design (Wi-Fi, LTE, GNSS, NFC, LPWAN, ISM, ZigBee, Bluetooth, Others)
- Smart Antenna Design
- Thermal Solution Design (Integrating Antennas & Heatsinks)
- High Gain Patch Antenna Solution
- Performance and Design Optimized for Both Internal and External Applications
- 3D Simulation Pretest Provided
- Extensive Lab and Field Testing Support
