• Model Name: ALX23M-092AA0-00
• Single Band 802.11 a/n/ac/ax AP/Router embedded antenna
Planar Inverted-F Antenna (PIFA)
Integrated shielding, easy integration
Bluetooth, Wi-Fi applications
Custom antenna design, advanced computer simulation

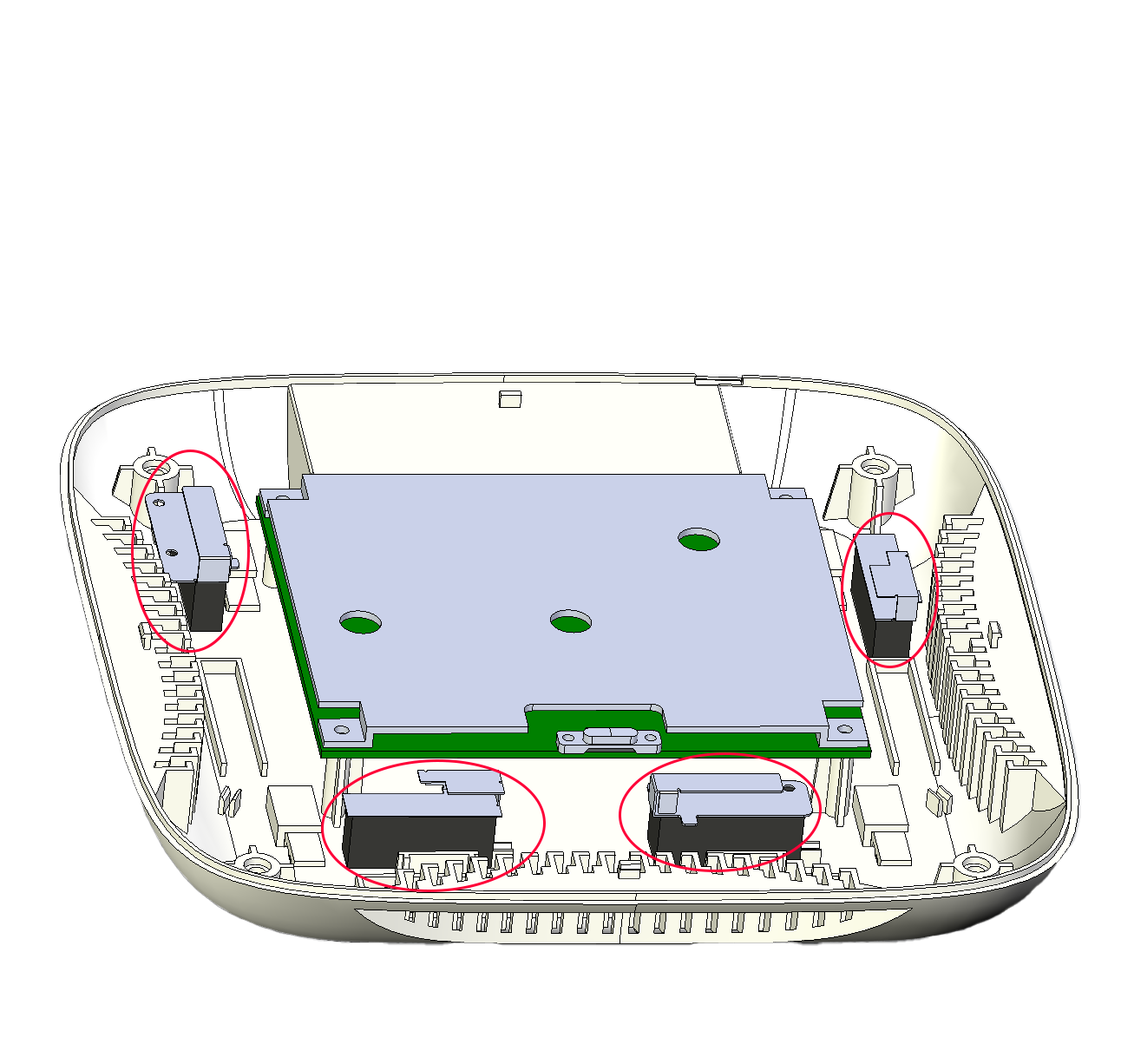

The LYNwave AP/Router embedded antenna, ALX23M-092AA0-00 provides high efficiency and quick integration to deliver powerful performance at 5150~5825MHz. It has a peak gain of 5.3dBi with MHF compatible connector, and can be used in multiple applications such as navigation, location and tracking devices, smart wearables devices, transportation, geofencing, agriculture and infrastructure.
Since LYNwave has strong R&D antenna hardware development capabilities with 50+ antenna design patents and is specialized in using computer simulation to design customized antennas, we will offer you the optimal OEM / ODM / JDM antenna with our skills and technologies. Contact LYNwave and we will provide comprehensive support for you.
| Model Name | ALX23M-092AA0-00 |
| Frequency (MHz) | 5150~5825 |
| Peak Gain (dBi) | 5.3 |
| VSWR | 2.0 : 1 |
| Power (Watts) | 1 |
| Impedance (Ohms) | 50 |
| Dimension (mm) | 30 x 10 x 5.6 |
| Thickness (mm) | 0.3 |
| Connector | N/A |
| Operation Temp (°C) | -40°C ~ +85°C |
| Cable | Low Loss RF-1.13 |
| Lead Time | 4~6 weeks |
