Feature
• Model Name: AOX20X-101AA0-00
• GPS Antenna
• Case mounting
• Frequency (MHz) : 1575 ± 1.023
• VSWR : 2.0 : 1

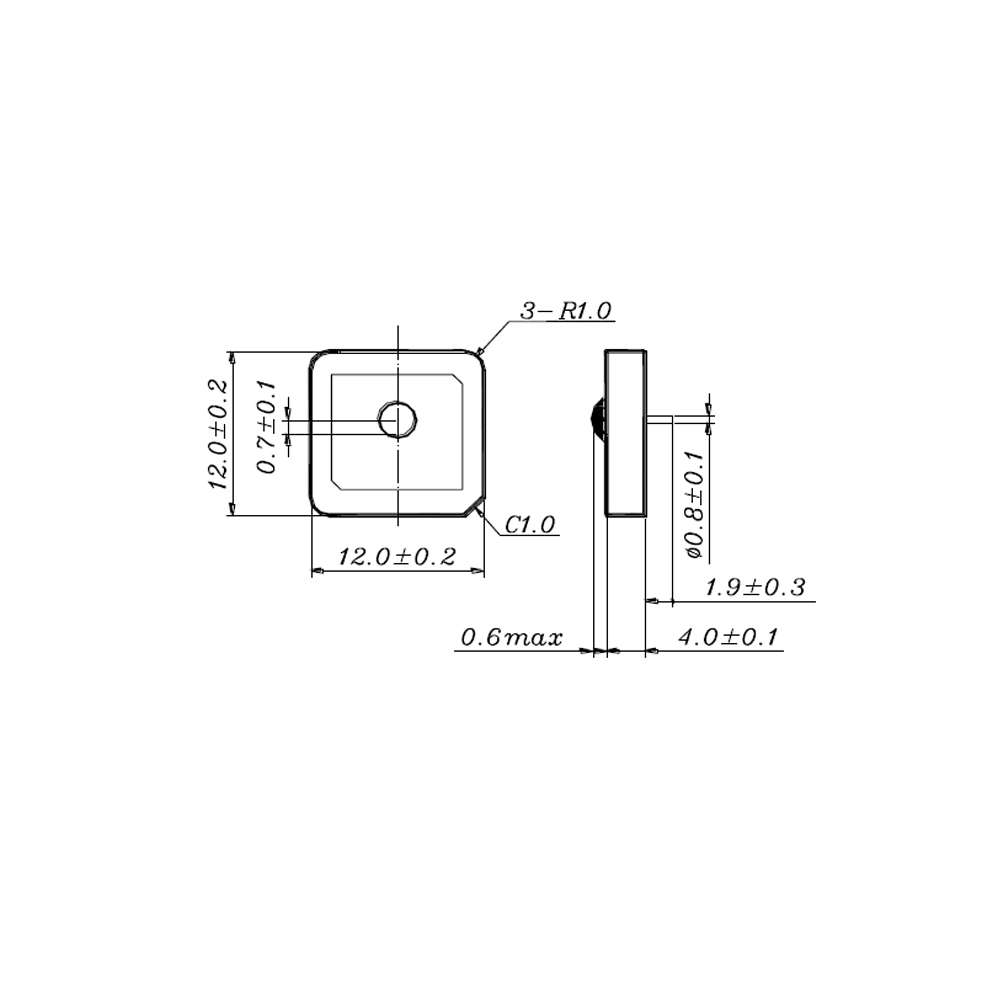

• Dimension (mm) : 12 x 12 x 1.9
• Polarization : R.H.C.P
Internal Pin Mount Dielectric 1.575GHz GPS GNSS Antenna
GPS Antenna / Passive Antenna
DESCRIPTION
SPECIFICATION
OUR SERVICE
Internal Pin Mount Dielectric 1.575GHz GPS GNSS Antenna
The LYNwave RHCP (Right Hand Circular Polarized) antenna is an internal 1.575GHz Dielectric GPS GNSS antenna, providing high efficiency and quick integration to deliver powerful performance. This pin mount antenna, AOX20X-101AA0-00, can be used in multiple industries such as aviation, transportation, infrastructure, marine, agriculture and security.
A GPS or GNSS antenna, providing connectivity with the Global Positioning System, a satellite-based radio navigation system designed by US Government, is used for transmitting and receiving the specific radio frequency signals needed for a GPS or GNSS device to perform functions like timing services, navigation, and positioning across the world. GPS signals are using the L-band of the radio frequency spectrum at sub-2GHz frequencies which have good penetration of cloud, varying weather conditions such as fog or rain. With the sound knowledge and experiences of designing GPS / GNSS antenna, LYNwave can make sure any of our antennas will be meeting your requirements for the module under various circumstances.
Since LYNwave has strong R&D antenna hardware development capabilities with 50+ antenna design patents and is specialized in using computer simulation to design customized antennas, we will offer you the optimal OEM / ODM / JDM antenna with our skills and technologies. Contact LYNwave and we will provide comprehensive support for you.
| Model# | AOX20X-101AA0-00 |
| Frequency (MHz) | 1575 ± 1.023 |
| Peak Gain | 0 dBic |
| VSWR | 2.0 : 1 |
| Polarization | R.H.C.P |
| Impedance (Ohms) | 50 |
| Dimension (mm) | 12 x 12 x 1.9 |
| Weight (g) | 8 |
| Operation Temp (°C) | -30°C ~ +80°C |
| Connector | Pin |
| MOQ | 100 pcs |
| Manufacturing | 100% made in Taiwan |
| Payment Terms | T/T |
| Shipping Terms | FOB Taiwan (Other terms negotiable) |
| Lead Time | 4~6 weeks |
- Innovative Customized Antenna Design Service
- RF Antenna Design (Wi-Fi, LTE, GNSS, NFC, LPWAN, ISM, ZigBee, Bluetooth, Others)
- Smart Antenna Design
- Thermal Solution Design (Integrating Antennas & Heatsinks)
- High Gain Patch Antenna Solution
- Performance and Design Optimized for Both Internal and External Applications
- 3D Simulation Pretest Provided
- Extensive Lab and Field Testing Support
