Feature
• Wide band LTE Antenna
• Case mounting or on board mount
• High efficiency & quick integration
DESCRIPTION
SPECIFICATION
OUR SERVICE
Embedded Wide Band LTE 5G Antenna

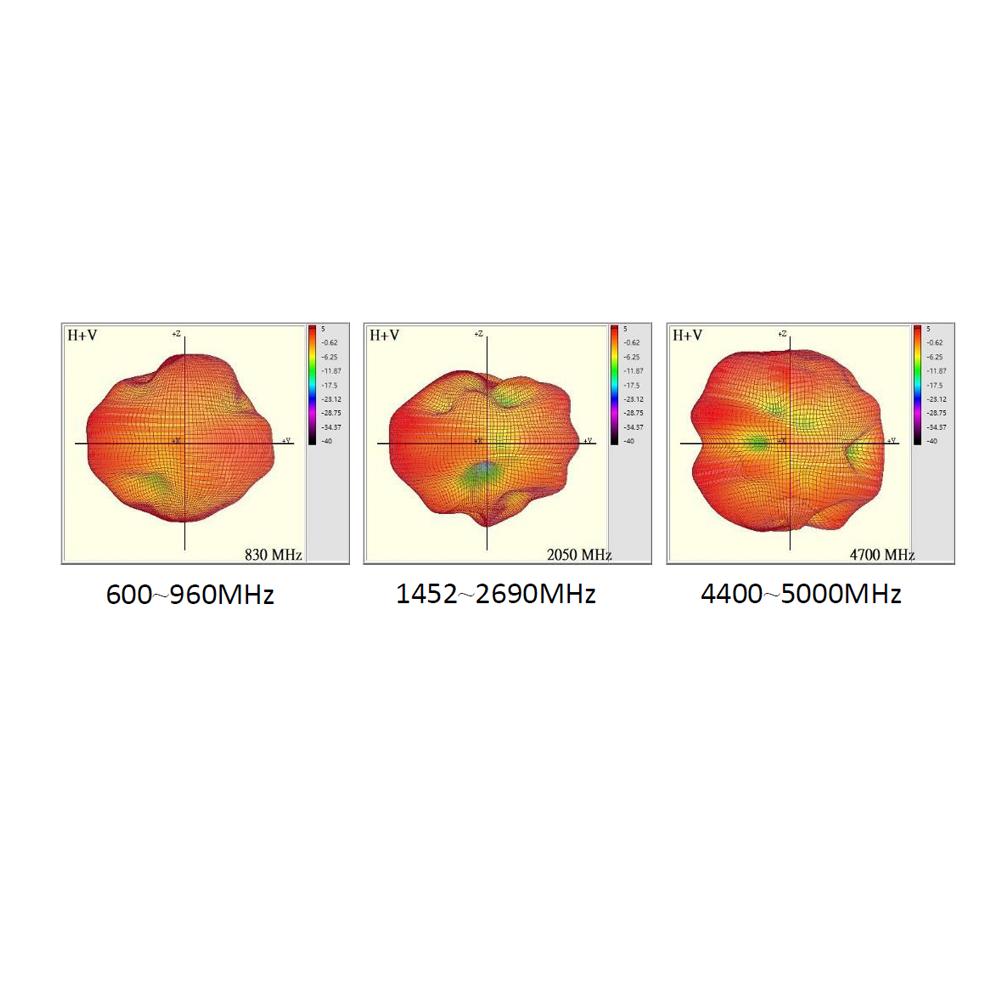

This LYNwave antenna is an embedded LTE 5G antenna, covering frequencies in the 700-960MHz / 1452-2690MHz / 4400-5000MHz spectrum, including all Cellular/LTE (5G/4G/3G/2G) bands. This wide-band antenna can be used on various fields such as connected home, IoT, telecommunications/networking, and commercial vehicles. LYNwave can make sure any of our antennas will be meeting your requirements for the application like our antenna ALX21F-012AA0-00.
Since LYNwave has strong R&D antenna hardware development capabilities and is specialized in using advanced computer simulation to create customized antennas, we will support you the optimal antenna with our skills and technologies. Custom tuned versions for different environments can be made. Contact LYNwave and we will provide comprehensive support for you.
| Model No. | ALX21F-012AA0-00 | |||
| Frequency (MHz) | 700-960 | 1452-2690 | 4400-5000 | |
| Peak Gain (dBi) | 3.2 | 5.3 | 5.6 | |
| VSWR | 3.0 : 1 | 3.0 : 1 | 3.0 : 1 | |
| Power (Watts) | 1 | 1 | 1 | |
| Impedance (Ohms) | 50 | 50 | 50 | |
| Dimension (mm) | 125 x 20.6 x 0.2 | |||
| Connector | ANC01131-451 | |||
| Cable Length (mm) | 120 | |||
- Innovative Customized Antenna Design Service
- RF Antenna Design (Wi-Fi, LTE, GNSS, NFC, LPWAN, ISM, ZigBee, Bluetooth, Others)
- Smart Antenna Design
- Thermal Solution Design (Integrating Antennas & Heatsinks)
- High Gain Patch Antenna Solution
- Performance and Design Optimized for Both Internal and External Applications
- 3D Simulation Pretest Provided
- Extensive Lab and Field Testing Support
